Product Details
Place of Origin: China
Brand Name: JUNPU
Certification: ROHS, CE, CCC
Model Number: GYXTW
Payment & Shipping Terms
Packaging Details: 2KM/Wooden Drum
Delivery Time: 1 ~ 10 Working days based on the quantity
Payment Terms: T/T

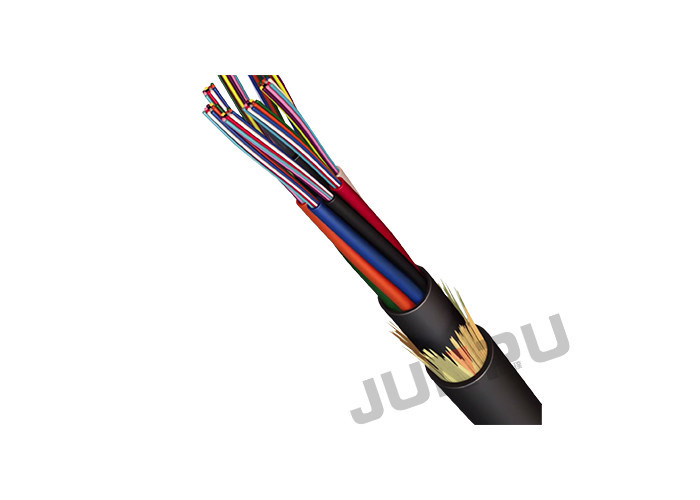

Supply Ability: 1000 Kilometer/Kilometers per Month 48 Core Single Core GYXTW Fiber Optic Cable Outdoor Aerial
Application: |
Aerial |
Fiber Type: |
Single Mode G652D |
Number Of Conductors: |
≥ 10 |
Fiber Count: |
48 Core |
OEM: |
Acceptable |
Product Name: |
48 Core Single Core GYXTW Fiber Optic Cable Outdoor Aerial |
Strength Member: |
Steel Wire |
Package: |
1km - 6km/roll |
Jacket Material: |
PE Outer Sheath |
Application: |
Aerial |
Fiber Type: |
Single Mode G652D |
Number Of Conductors: |
≥ 10 |
Fiber Count: |
48 Core |
OEM: |
Acceptable |
Product Name: |
48 Core Single Core GYXTW Fiber Optic Cable Outdoor Aerial |
Strength Member: |
Steel Wire |
Package: |
1km - 6km/roll |
Jacket Material: |
PE Outer Sheath |
FTTX Outdoor Multimode Fiber Optic Cable With FRP, Fiber Optic Drop Cable
Description
Technical Character
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.24 | ||
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube | Dimension | 2.10mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tensio (Long Term) | N | 600 |
| Tension (Short Term) | N | 1500 |
| Crush (Long Term) | N/10cm | 300 |
| Crush (Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
Technical Parameter
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
| 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 12.0 | 147 | 1000/3000 | 1000/3000 | 10D/20D |
| Transmission Characteristics | |||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Max Attenuation (dB/km) (+20℃) |
850 nm | 3.0 | 3.3 | ||
| 1300 nm | 1.0 | 1.0 | |||
| 1310 nm | 0.36 | 0.4 | |||
| 1550 nm | 0.24 | 0.23 | |||
| Cable Cute-off Wavelength (nm) | ≤1260 | ≤1450 | |||
